Product Overview

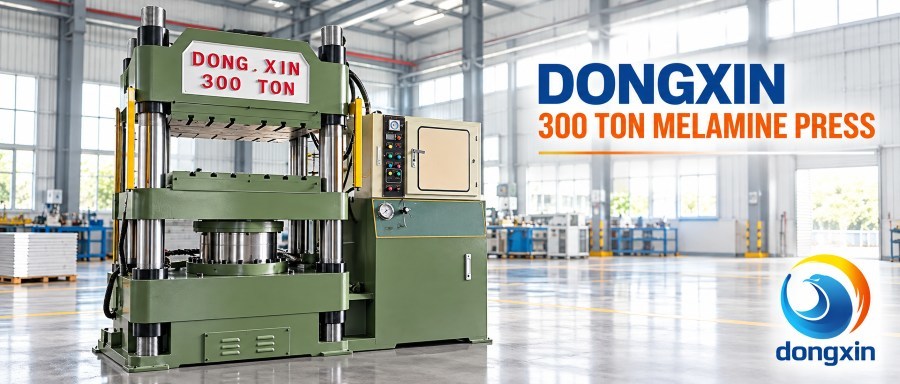

The Stable Operation Melamine Dinnerware Compression Molding Press is a professional hydraulic molding equipment specially designed for mass production of melamine tableware. It adopts an optimized heavy-duty hydraulic system and rigid machine frame structure, which effectively reduces vibration during long-time continuous operation.
The machine is used to compress melamine powder into finished tableware under high temperature and high pressure, producing melamine bowls, plates, trays, kids tableware, and catering dinnerware. Equipped with a PLC touch screen control system, users can set pressure, temperature, and holding time flexibly according to different molds and melamine powder grades.
With stable performance and low failure rate, this hydraulic press helps melamine factories maintain consistent product quality, reduce downtime, and improve overall production efficiency.
Core Advantages
- Reinforced thick steel frame structure with strong rigidity and low vibration, guaranteeing stable long-hour continuous running.
- Mature hydraulic drive system with stable pressure output and uniform force on every molding cycle.
- PLC + touch screen intelligent control — freely adjust pressure, temperature, and curing time, and store multiple product parameter recipes.
- High-precision temperature control system maintains stable mold temperature for consistent melamine molding results.
- Safety protection devices including emergency stop and pressure overload protection ensure operator safety.
- Wide compatibility — works with different molds for plates, bowls, trays, and irregular melamine tableware.
- Low failure rate and easy maintenance — key hydraulic and electric components adopt well-known brand parts.
- Can be matched with melamine powder preheating machine, auto weighing machine, decal cutter, and edge grinding machine to form a fully automatic production line.
Technical Parameters
| Item | Specification |
|---|
| Product Name | Stable Operation Melamine Dinnerware Compression Molding Press |
| Application | Melamine plates, bowls, trays, children dinnerware, catering tableware |
| Control System | PLC + Touch Screen |
| Working Pressure | Customizable (150T / 200T / 250T / 300T optional) |
| Mold Heating Temp | 140°C – 180°C adjustable |
| Voltage | AC380V, 50/60Hz |
| Operation | Manual / Semi-auto / Full-auto optional |
| Key Features | Stable running, low vibration, precise pressure & temperature control |
| Customization | Custom tonnage, mold size, working stroke, safety configuration |
| Packaging | Export fumigated wooden case |
Custom Service
We provide customized service for the melamine molding press. Different tonnage, working stroke, and mold mounting size can be customized to match your melamine tableware molds. Our technical team can adjust the hydraulic and electric configuration according to your production capacity requirements.
Operation manual, operation video, and remote technical support are provided. Machine running test video can be offered before shipment. On-site installation guidance and staff training are available upon request.
Application Scope
This compression molding press is core equipment for melamine tableware manufacturing factories. It is widely used to produce household melamine dinnerware, restaurant catering tableware, cartoon children melamine tableware, and picnic and gift melamine sets.
It can process A1, A3, and A5 grade melamine molding powder. Combined with auxiliary machines, it can build a complete melamine production line from powder feeding, preheating, molding, decal cutting, to edge polishing.
Quality Control
Every press machine will pass a strict continuous running test before delivery. We check hydraulic pressure stability, temperature control accuracy, frame vibration, and all safety protection functions. All electrical and hydraulic components are inspected one by one.
We guarantee the machine runs stably under long continuous production. Test records will be provided together with the machine.
Frequently Asked Questions
Q1: What types of melamine products can this molding press produce?
A1: It can produce melamine plates, bowls, trays, and various shaped melamine dinnerware with matched molds.
Q2: Can we adjust pressure and temperature for different melamine powder grades?
A2: Yes, all parameters including pressure, temperature, and holding time can be set on the touch screen.
Q3: What options are available for machine tonnage?
A3: 150T, 200T, 250T, and 300T are standard options. Larger tonnage can be customized.
Q4: What after-sales service do you provide?
A4: We supply an operation manual, video guidance, and remote technical support. On-site training can be arranged.
Q5: How long is the production lead time?
A5: Normally 20–30 working days after deposit, subject to machine configuration and custom requirements.
